CNC Turret Punch Components

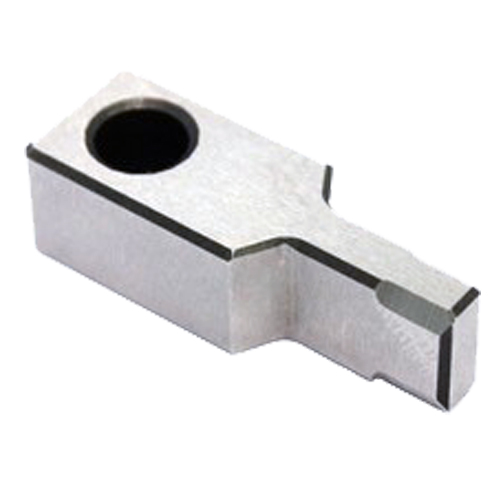

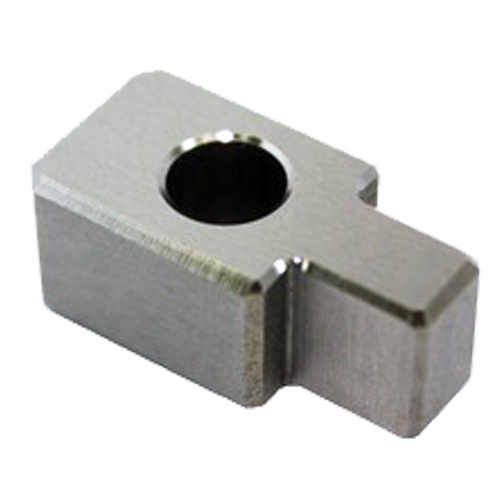

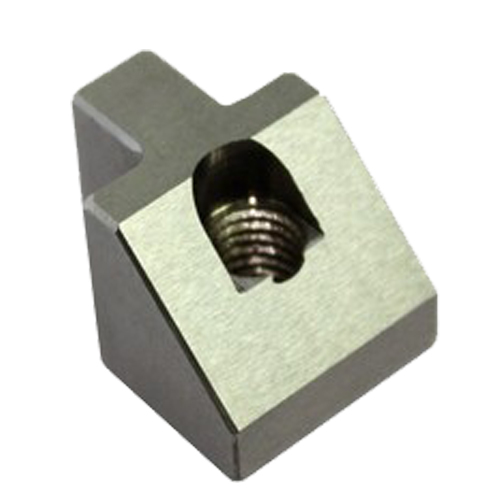

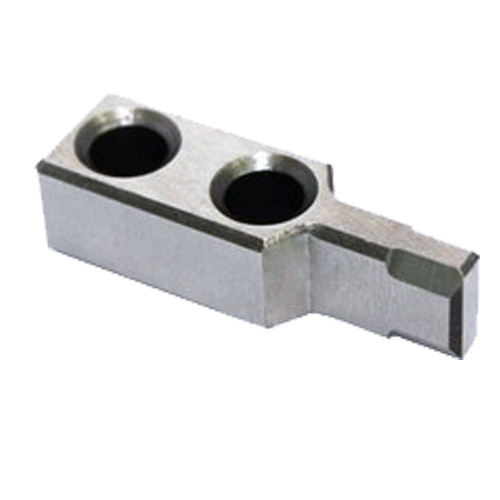

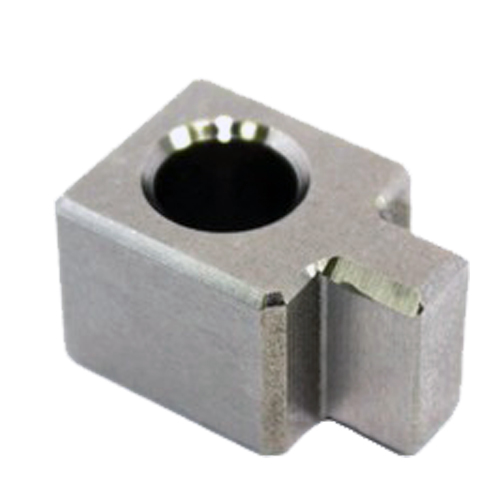

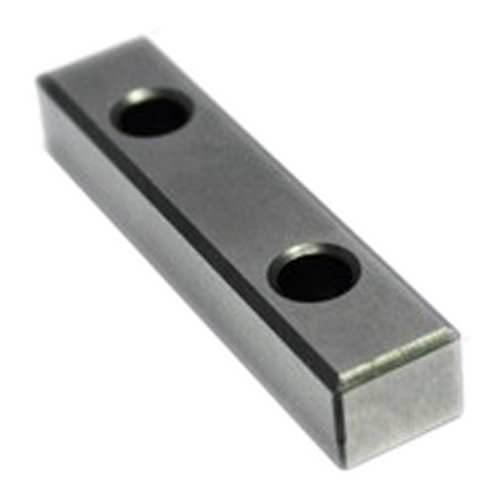

B station rotate station adjusting key

  • Part Name: B station rotate station adjusting key
  • Material: punch body:SKH-51 punch die:DC53
  • Surface finish -Ra: 0.0001
  • Tolerance: 0.01
  • Applications:

TR011101-amada tooling accessories

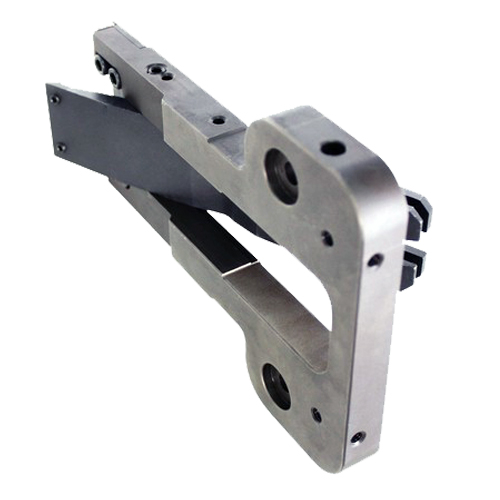

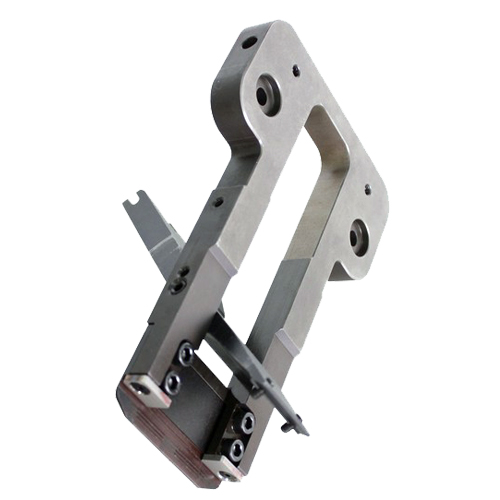

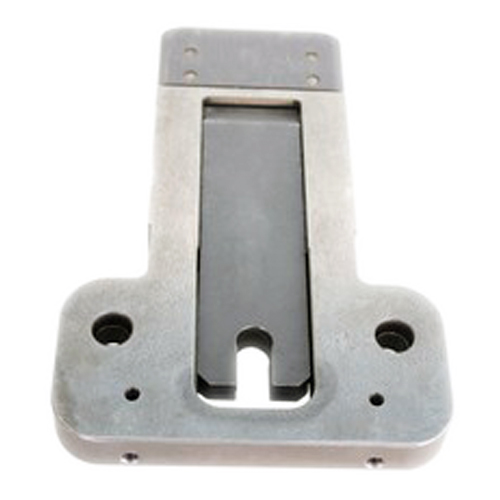

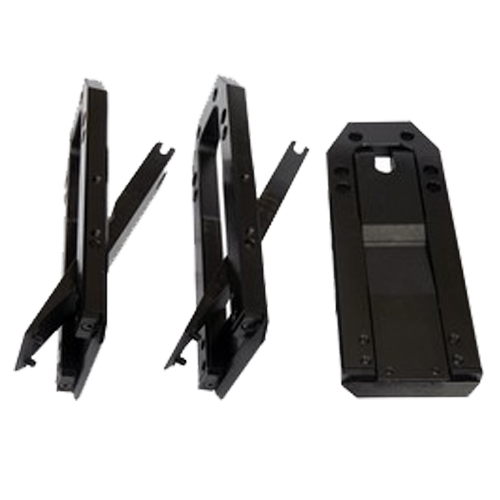

Amada Clamp


  1. Please indicate the machine model in order. Different model has a little difference.
  2. It’s suitable for AMADA Vipros 255 ARIES S222 224.
  3. Amada mechanical air pressure type clamp thickness 14mm, COMA PEGA ARIES
  4. Amada hydraulic hydraulic type clame thickness 17mm, VIPROS

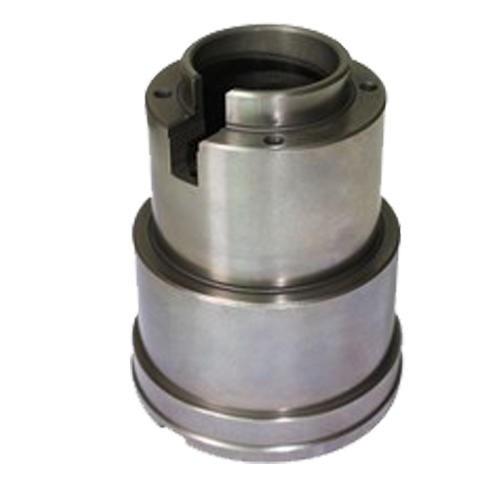

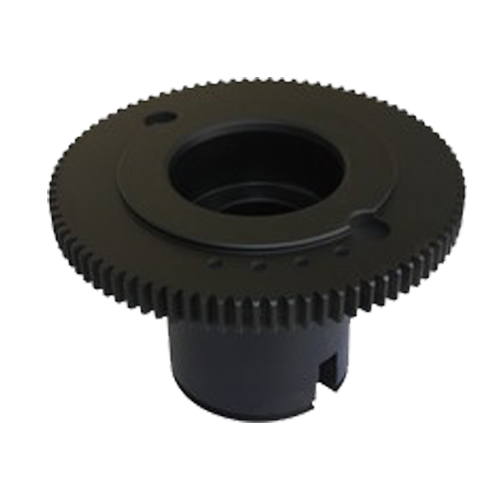

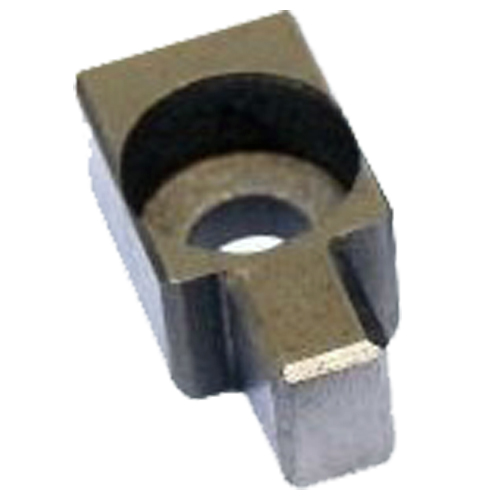

Rotation Station Punch Sleeve 1

  1. it’s applicable with AMADA357, especially for the second hand machine, when the auto rotation station’s precision is invalid and need to replace.
  2. Punch sleeve adopt special steel, using speical heat treatment and surface treatment technology, the punch sleeve is both wear and tough.

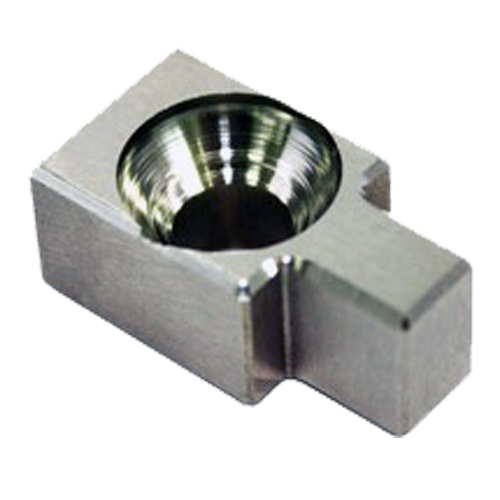

Rotation Station Punch Sleeve 2

  1. It’s applicable with AMADA255, 2510, 245 machine.
  2. When ordering, please indicate machine mode or turret tool’s station quantity.
  3. Different model’s equipment size is a little different.

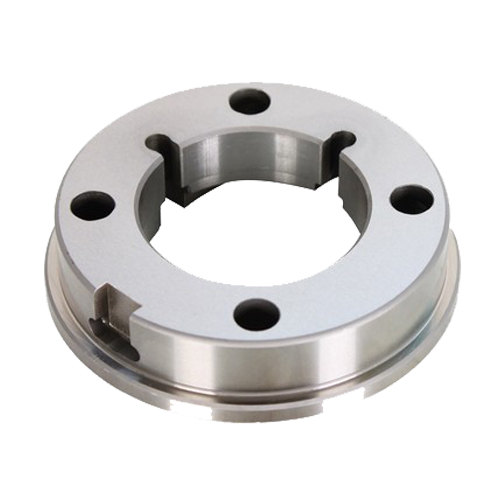

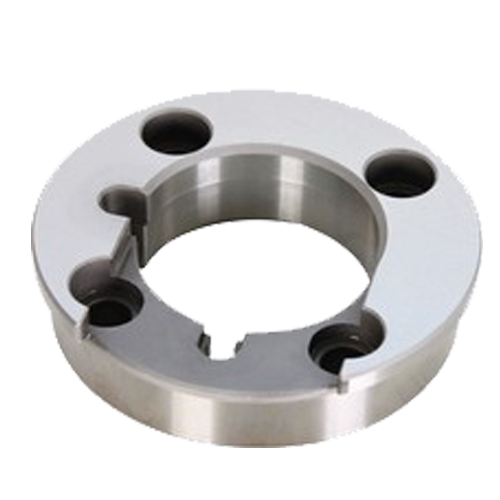

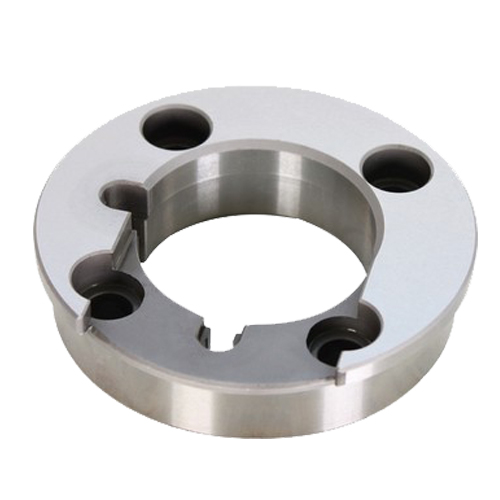

Rotation Station Die Holder

  1. it’s applicable with AMADA255, especially for the second hand machine, when the auto rotation station’s precision is invalid and need to replace.
  2. Die holder adopt special steel, using speical heat treatment and surface treatment technology, the punch sleeve is both wear and tough.
