Thin Turret (short guide) Punch Press Tools

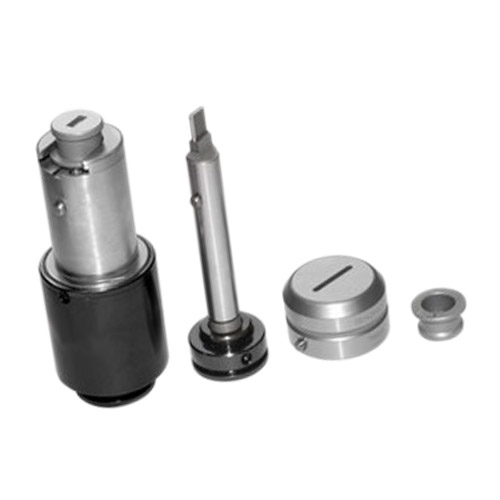

Standard thin turret punch assembly D station

  • Part Name: Standard thin turret punch assembly D station
  • Material: punch body:SKH-51 punch die:DC53
  • Surface finish -Ra: 0.0001
  • Tolerance: 0.01
  • Applications: Sheet mental area.

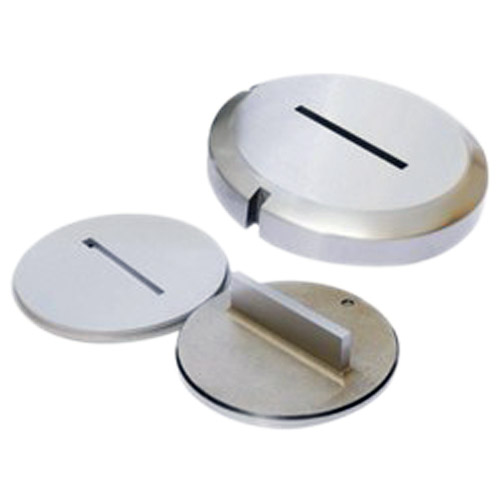

TR010303-Thin Turret Standard Insert Type Tooling


  1. The punch body’s structure is very simple, which will make up the defect of no A station on the thin turret punch press.
  2. Punch body’s adjustment is convenient, punch body’s grinding capacity is more than 5mm, it has low using cost.
  3. Stripper plate can anti-rotate, guide, punch body have prevent bounce design.
  4. After buying guide assembly, only need to buy punch body, stripper plate and die.
  5. To use insert type tool instead of standard tool will save much cost for thin turret punch press.
