Trumpf Toolings

Size 2 punch and die

  • Part Name: Size 2 punch and die
  • Material: punch body:SKH-51 punch die:DC53
  • Surface finish -Ra: 0.0001
  • Tolerance: 0.01
  • Applications: Sheet mental areas

TR010501-Trumpf punch and die

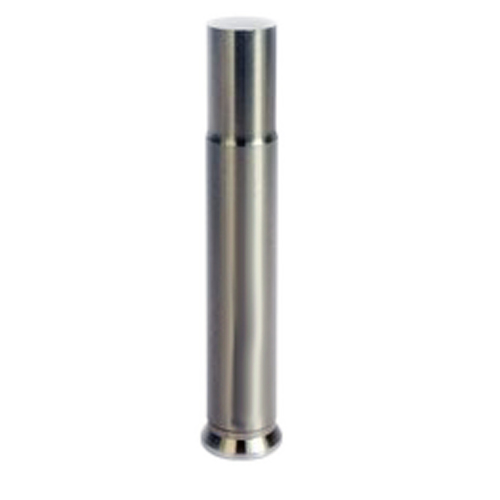

Size 0-A Punch Insert
There are two length for the punch insert. One is 60mm which is suitable for ABCEDGHS group machine; The other one is 63mm which is for universal machine.

Size 0-A Punch Chunk
Size: 0-A, diameter 1.0-6.0mm
This structure isn’t suitable for punching on stainess steel. Sugget to use integral type Size I punch body instead.

Size 0-B Punch Insert
Size: 0-B, diameter 6.01-10.5mm
This structure isn’t suitable for punching on stainess steel. Sugget to use integral type Size I punch body instead.
There are two length for the punch insert. One is 60mm which is suitable for ABCEDGHS group machine; The other one is 63mm which is for universal machine.

Size 0-B Punch Chunk
Size: 0-B, diameter 6.01-10.5mm
This structure isn’t suitable for punching on stainess steel. Sugget to use integral type Size I punch body instead.

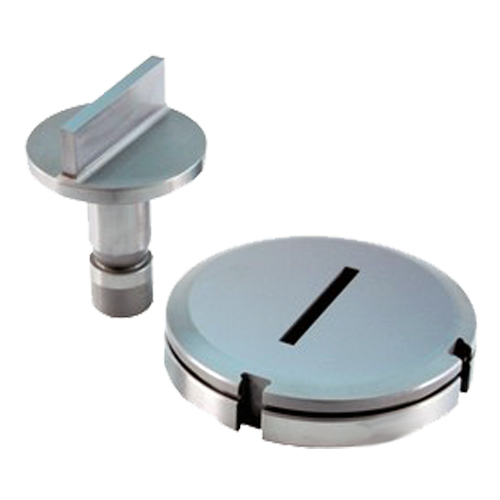

Size I Round and Shape Punch Body and Die
Size I-A, diameter 1.0-15mm
Size I-B, diameter 15.0-30.0mm

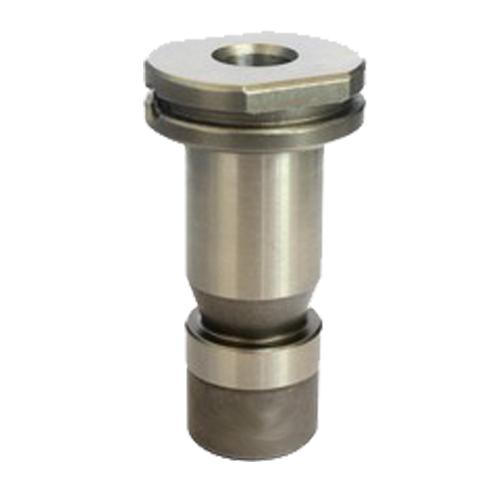

Size II Punch Body and Die
Size II-A, diameter 30.01-40.0mm
Size II-B, diameter 40.01-50.8mm
Size II-C, diameter 50.81-60mm
Size II-D, diameter 60.1-76.2mm

Size III Punch Body and Die
Size III, diameter 76.21-105mm, this station is only suitable for slot machine

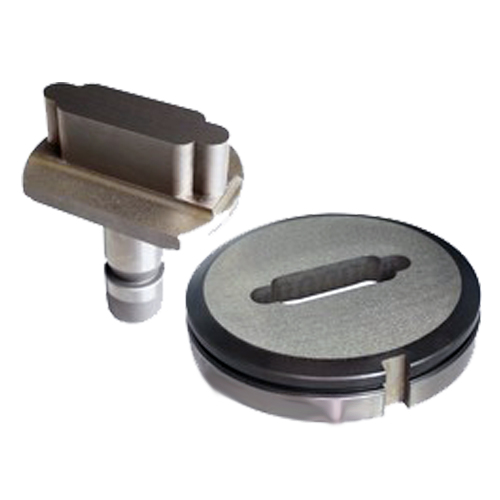

Trumpf SP17.2x57 Punch Body and Die
Size II-C, diameter 50.81-60mm
Size II-D, diameter 60.1-76.2mm
