Press Brake Toolings

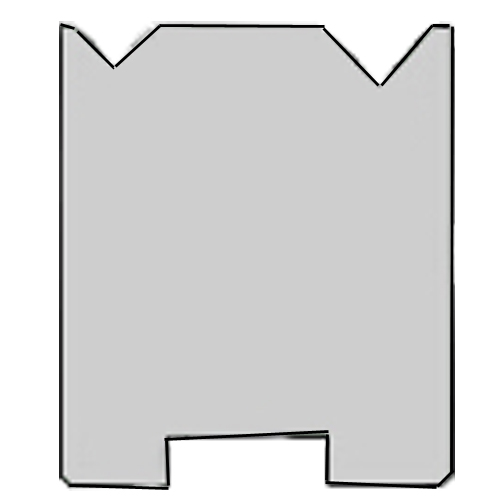

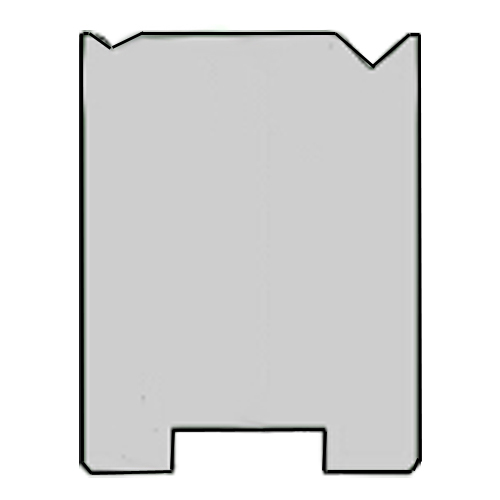

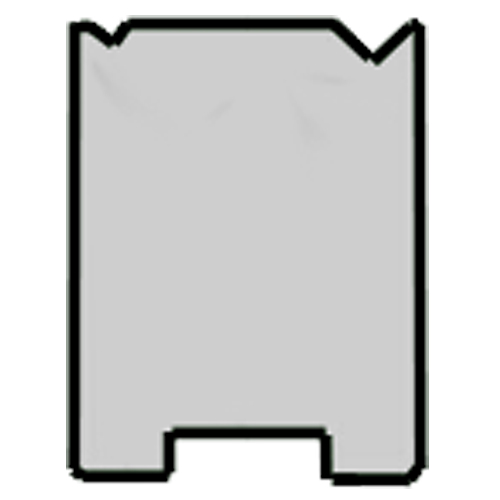

2V fixed slide rail lower die with one core
- Part Name： TR0205-2V fixed slide rail lower die with one core
- Material： 42CrMo
- Surface finish -Ra：
- Tolerance：
- Applications： Sheet metal area
TR0205

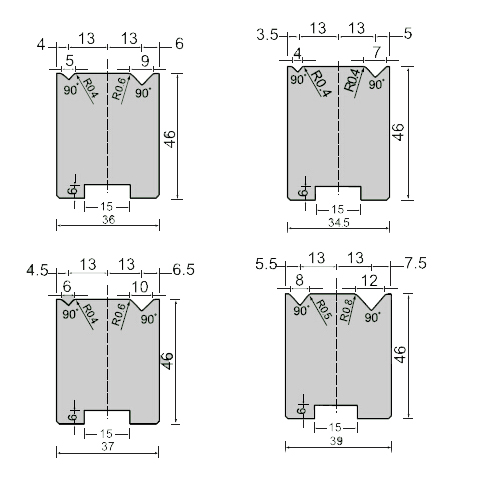

TR020501-90 °2V fixed slide rail lower die with one core
| No. | H (mm) | V | Material & Heat Treatment | Max.Pressure |
| 5019 | 46 | V4-V7 | 42CrMo & HRC47+-2 | 60TON/M |
| 5079 | 46 | V5-V9 | 42CrMo & HRC47+-2 | 70TON/M |
| 5029 | 46 | V6-V10 | 42CrMo & HRC47+-2 | 70TON/M |
| 5039 | 46 | V8-V12 | 42CrMo & HRC47+-2 | 70TON/M |

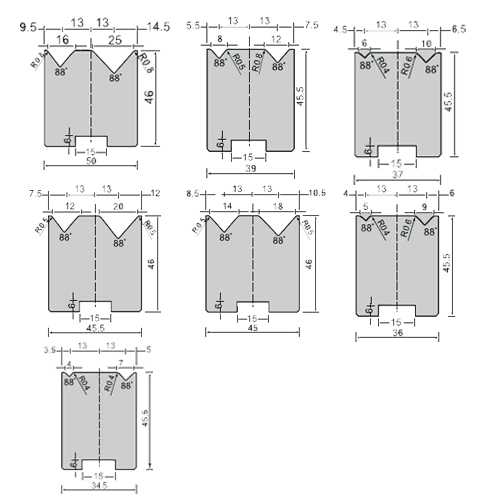

TR020502-88 °2V fixed slide rail lower die with one core
| No. | H (mm) | V | Material & Heat Treatment | Max.Pressure |
| 50196 | 45.5 | V4-V7 | 42CrMo & HRC47+-2 | 60TON/M |
| 50796 | 45.5 | V5-V9 | 42CrMo & HRC47+-2 | 70TON/M |
| 50490 | 46 | V14-V18 | 42CrMo & HRC47+-2 | 100TON/M |
| 50590 | 46 | V12-V20 | 42CrMo & HRC47+-2 | 100TON/M |
| 50296 | 45.5 | V6-V10 | 42CrMo & HRC47+-2 | 70TON/M |
| 50396 | 45.5 | V8-V12 | 42CrMo & HRC47+-2 | 70TON/M |
| 50690 | 46 | V16-V25 | 42CrMo & HRC47+-2 | 100TON/M |

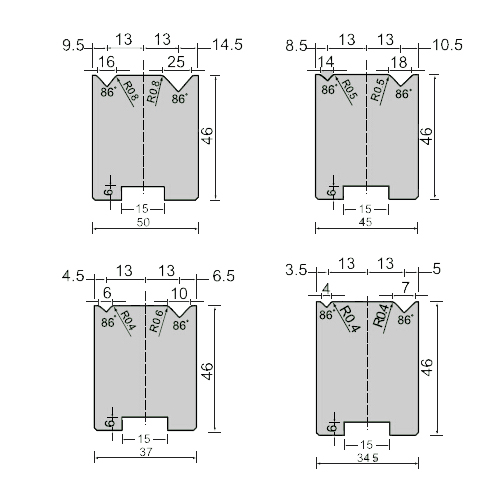

TR020503-86 °2V fixed slide rail lower die with one core
| No. | H (mm) | V | Material & Heat Treatment | Max.Pressure |
| 50198 | 46 | V4-V7 | 42CrMo & HRC47+-2 | 60TON/M |
| 50298 | 46 | V6-V10 | 42CrMo & HRC47+-2 | 70TON/M |
| 5029 | 46 | V14-V18 | 42CrMo & HRC47+-2 | 100TON/M |
| 50698 | 46 | V16-V25 | 42CrMo & HRC47+-2 | 100TON/M |
