Flanging avoid vacancy punch

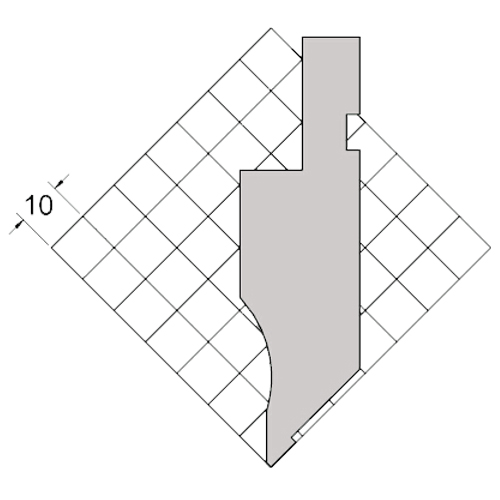

90°flanging avoid vacancy upper die-2
- Part Name： 90°flanging avoid vacancy upper die-2
- Material： 42CrMo
- Surface finish -Ra：
- Tolerance：
- Applications：
TR0203
TR020301-90°flanging avoid vacancy upper die-1
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 0168 | Solid | 67 | 0.2R | 42CrMo & HRC52-56 | 20TON/M |
| 1478 | Sectional | 20TON/M |
TR020302-90 °flanging avoid vacancy upper die-2
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 0169 | Solid | 67 | 0.2R | 42CrMo & HRC52-56 | 80TON/M |
| 1479 | Sectional | 40TON/M |
TR020303-88 °flanging avoid vacancy upper die-1
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 4527 | Solid | 90 | 0.2R | 42CrMo & HRC52-56 | 80TON/M |
| 1507 | Sectional | 20TON/M |
TR020304-88 °flanging avoid vacancy upper die-2
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 0048 | Solid | 67 | 0.2R,0.6R | 42CrMo & HRC52-56 | 40TON/M |
| 1488 | Sectional | 20TON/M |
TR020305-88 °flanging avoid vacancy upper die-3
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 0049 | Solid | 67 | 0.2R,0.6R | 42CrMo & HRC52-56 | 80TON/M |
| 1489 | Sectional | 40TON/M |
TR020306-88 °flanging avoid vacancy upper die-4
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 0047 | Solid | 90 | 0.2R | 42CrMo & HRC52-56 | 40TON/M |
| 1478 | Sectional | 11TON/M |
