Right angle punch
right angle upper punch (90°)-3
- Part Name： right angle upper punch (90°)-3
- Material： 42CrMo
- Surface finish -Ra：
- Tolerance：
- Applications：
TR0201
TR020101-88 degree right angle upper punch-1
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 004 | Solid | 67 | 0.2R, 0.6R, 0.8R, 1.5R, 3.0R | 42CrMo & HRC47+-2 | 100TON/M |
| 148 | Sectional | 45TON/M |
TR020102-88 degree right angle upper punch-2
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 117 | Solid | 67 | 0.2R, 0.6R | 42CrMo & HRC47+-2 | 20TON/M |
| 11780 | Sectional | 11TON/M |
TR020103-88 degree right angle upper punch-3
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 047 | Solid | 120 | 0.2R, 0.6R, 0.8R, 1.5R, 3.0R | 42CrMo & HRC47+-2 | 50TON/M |
| 052 | Sectional | 45TON/M |
TR020104-90 degree right angle upper punch-1
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 016 | Solid | 67 | 0.2R, 0.6R, 0.8R, 1.5R, 3.0R | 42CrMo & HRC47+-2 | 100TON/M |
| 147 | Sectional | 45TON/M |
TR020105-90 degree right angle upper punch-2
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 116 | Solid | 67 | 0.2R | 42CrMo & HRC47+-2 | 20TON/M |
| 11680 | Sectional | 11TON/M |
TR020106-90 degree right angle upper punch-3
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 048 | Solid | 120 | 0.2R | 42CrMo & HRC47+-2 | 50TON/M |
| 053 | Sectional | 45TON/M |
TR020107-right angle upper punch (88°)-1
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 452 | Solid | 90 | 0.2R, 0.6R, 0.8R, 1.5R, 3.0R | 42CrMo & HRC47+-2 | 70TON/M |
| 150 | Sectional | 45TON/M |
TR020108-right angle upper punch (88°)-2
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure | |
| 453 | Solid | 90 | 0.2R, 0.6R, 0.8R, 1.5R, 3.0R | 42CrMo & HRC47+-2 | 50TON/M | |
| 155 | Sectional | 30TON/M | ||||
TR020109-right angle upper punch (88°)-3
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure | |
| 045 | Solid | 105 | 0.2R, 0.6R, 0.8R, 1.5R, 3.0R | 42CrMo & HRC47+-2 | 50TON/M | |
| 050 | Sectional | 45TON/M | ||||
TR020110-right angle upper punch (90°)-1
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 462 | Solid | 90 | 0.2R | 42CrMo & HRC47+-2 | 70TON/M |
| 151 | Sectional | 45TON/M |
TR020111-right angle upper punch (90°)-2
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 463 | Solid | 90 | 0.2R | 42CrMo & HRC47+-2 | 50TON/M |
| 156 | Sectional | 30TON/M |

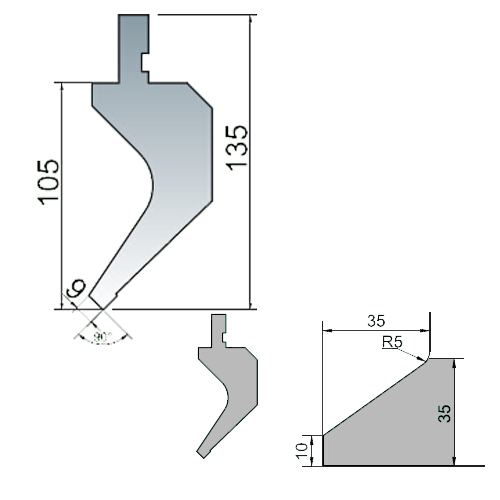

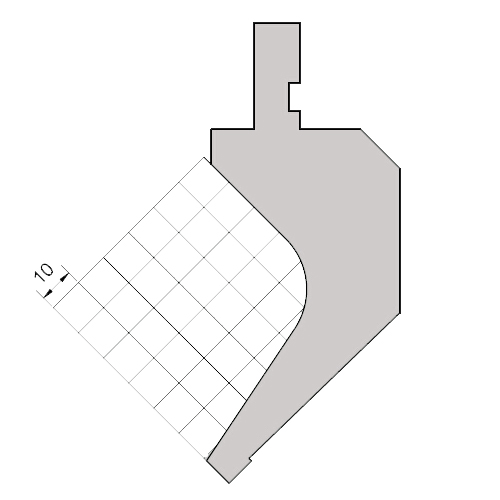

TR020112-right angle upper punch (90°)-3
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 046 | Solid | 105 | 0.2R | 42CrMo & HRC47+-2 | 50TON/M |
| 051 | Sectional | 45TON/M |

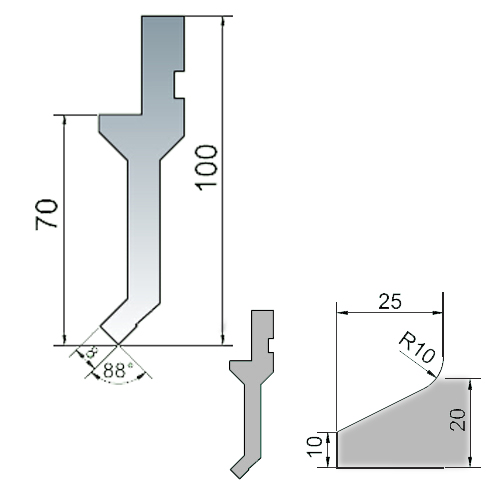

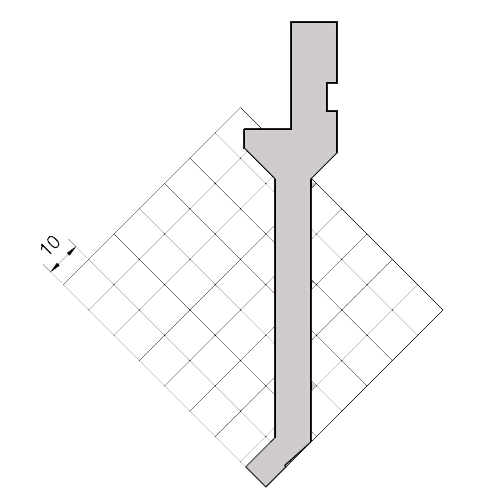

TR020113-88°upper punch of right angle bending tool-1
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 200 | Solid | 70 | 0.2R, 0.6R | 42CrMo & HRC47+-2 | 30TON/M |
| 20080 | Sectional | 15TON/M |
TR020114-88°upper punch of right angle bending tool-2
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 202 | Solid | 100 | 0.2R, 0.6R | 42CrMo & HRC47+-2 | 30TON/M |
| 20280 | Sectional | 15TON/M |

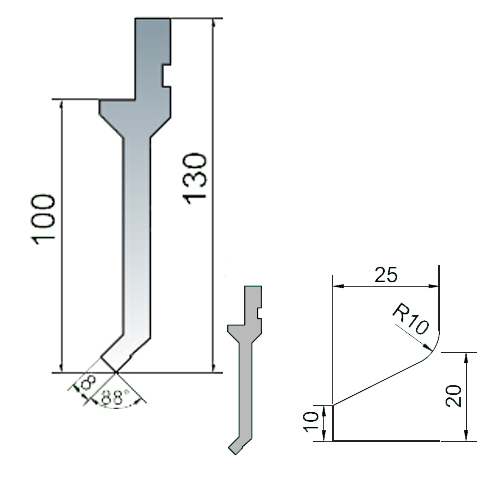

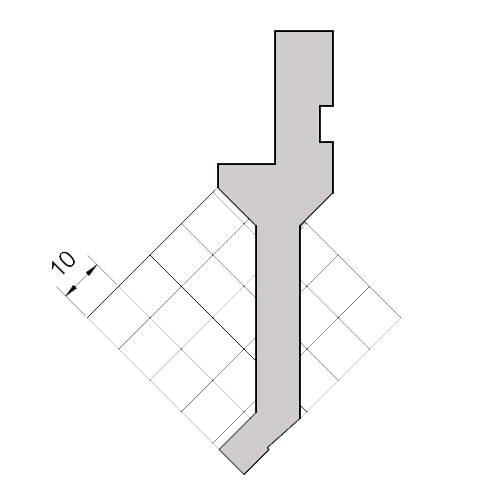

TR020115-88°upper punch of right angle bending tool-3
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 109 | Solid | 95 | 0.2R, 0.6R | 42CrMo & HRC47+-2 | 50TON/M |
| 107 | Sectional | 12TON/M |
TR020116-90°upper punch of right angle bending tool-1
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 201 | Solid | 70 | 0.2R | 42CrMo & HRC47+-2 | 30TON/M |
| 20180 | Sectional | 15TON/M |
TR020117-90°upper punch of right angle bending tool-2
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 203 | Solid | 100 | 0.2R | 42CrMo & HRC47+-2 | 30TON/M |
| 20380 | Sectional | 15TON/M |
TR020118-90°upper punch of right angle bending tool-3
| No. | Type | H (mm) | R Available | Material & Heat Treatment | Max.Pressure |
| 108 | Solid | 95 | 0.2R | 42CrMo & HRC47+-2 | 50TON/M |
| 106 | Sectional | 12TON/M |
