Thick Turret Long Guide Punch Tool

85 Air Blow (ABS) series tool

  • Part Name: 85 Air Blow (ABS) series tool
  • Material: punch body:SKH-51 punch die:DC53
  • Surface finish -Ra: 0.0001
  • Tolerance: 0.01
  • Applications: Sheet mental areas

TR010102-85 ABS Series Punch Press Tools

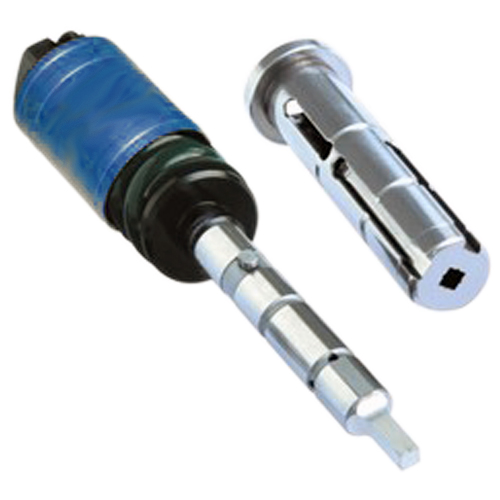

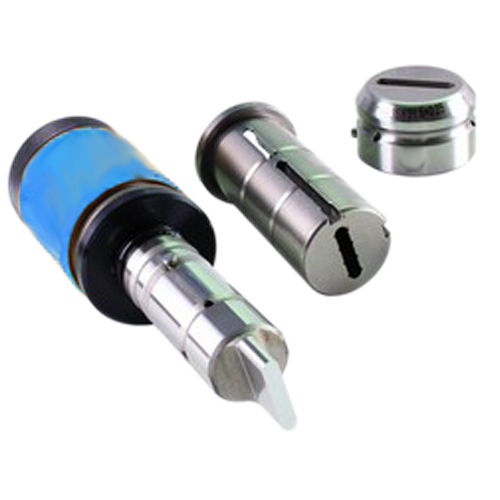

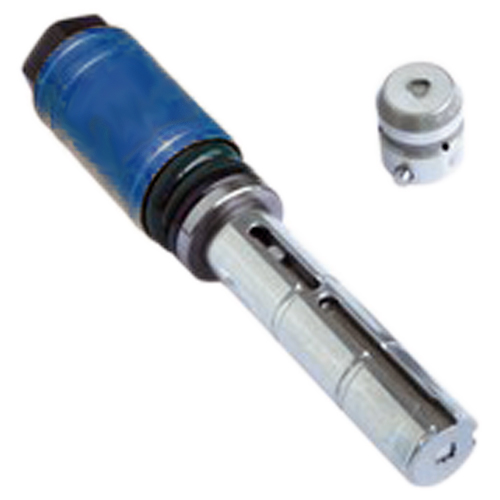

A/B station punch, guide and die

1. The air blow series toolings have the function of lubricating and cooling down punch body and can inhibit blade sticking phenomenon.
2. This air blow function can suppress waste floating, prevent material refounding and jumping.
3. It can increase the punch body’s using life , which will be 2-3 times longer than standard punch body. And also can reduce grinding time and improve efficiency.
4. Spring retainer adopts double-sided taper design, which can use double side and will increase the blade’s grinding amount and extend tooling life.
5. Guide adopts lubrication design, graphite processing, to reduce the abrasion of punch turret hole.

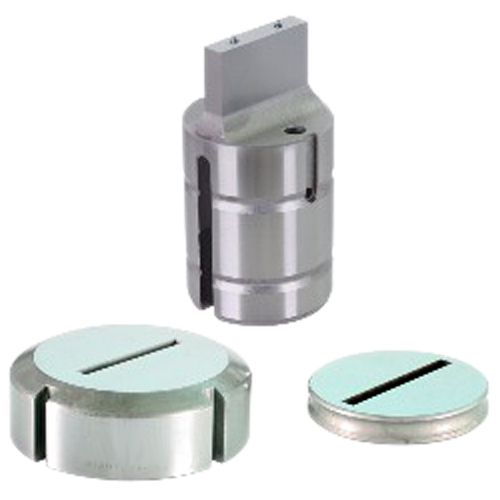

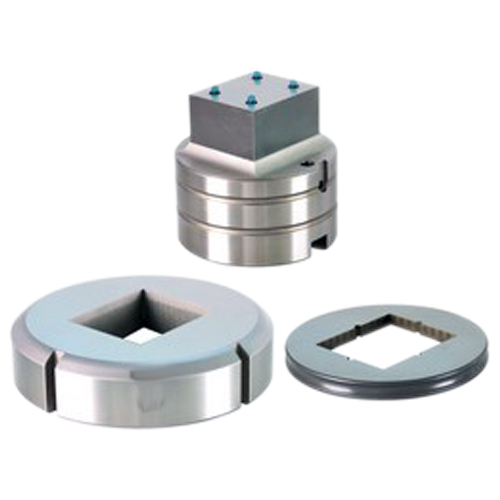

C/D/E station punch body, die and stripper plate

1. The air blow series toolings have the function of lubricating and cooling down punch body and can inhibit blade sticking phenomenon.
2. This air blow function can suppress waste floating, prevent material refounding and jumping.
3. It can increase the punch body’s using life , which will be 2-3 times longer than standard punch body. And also can reduce grinding time and improve efficiency.
4. There’s no need to add extra shim on the air blow adjustable guide and the grinding amount will be longer than 10.0mm.
5. Guide adopts lubrication design, graphite processing, to reduce the abrasion of punch turret hole.

C/D/E station guide assembly

1. For air blow guide, there’s no need to add shim when adjust the tool. By rotating the button directly to adjust the height and can increase 2-3 times of grinding amount.
2. Guide adopts lubrication design, graphite processing, to reduce the abrasion of punch turret hole.
3. The lock form on the stipper plate is different with the original tool. The original stripper locking ring may damage easily. But our tool adopt special process spring locking form which is safe and easy to use and can save cost improve efficiency.
4. The locking screw on the stripper must change after some time or else the slip teeth may cause the screw may not be removed, then the stripper will not be removed out easily. This will increase much more using cost. At the meantime, please use high quality allen wrench to disamble. This will not make the screw hole slip teeth.
