Thick Turret Long Guide Punch Tool

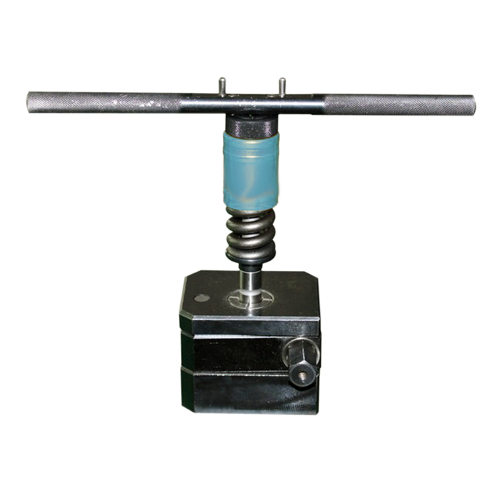

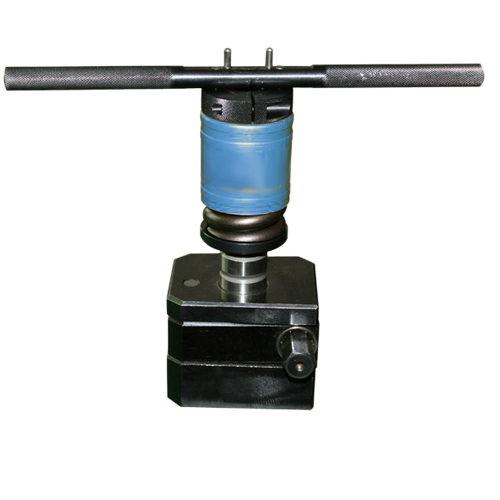

Thick turret B station punch disassemble overall view

  • Part Name: Thick turret B station punch disassemble overall view
  • Material: punch body:SKH-51 punch die:DC53
  • Surface finish -Ra: 0.0001
  • Tolerance: 0.01
  • Applications: Sheet mental areas

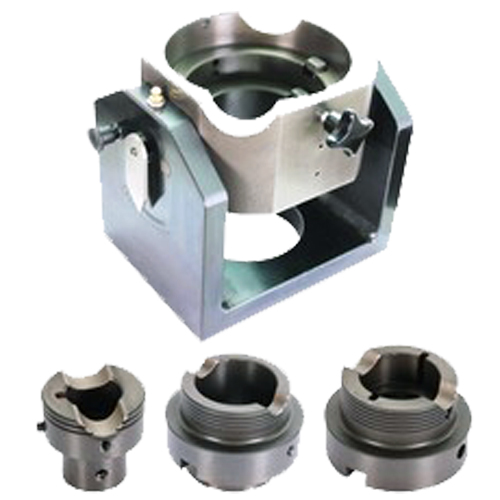

TR010112-Thick turret punch press tool surface grinding tool

1.When using surface grinder to grind punch body and die, the most difficlut thing is installing and locating.
2.Use grinding tool to install punch body and die is very convenient and quick. To install on the special clamp directly will be ok to use.
3.While grinding, the mold won’t touch to the grinder’s magnetic plate, so that the mold won’t be magnetizing and will reduce blanking material when stamping.
4.With the grinder’s tilt mechanism, the convenient grinding punch angle: roof and oblique edge style.
5.It’s suitable for grinding thick turret ABCD station punch body and die, using coordinately with disambley tool sets is very convinient and quickly.
6.If you need more convenient, simple, safe, quick, highly quality grinding, you can choose our more professional auto-grinding machine.

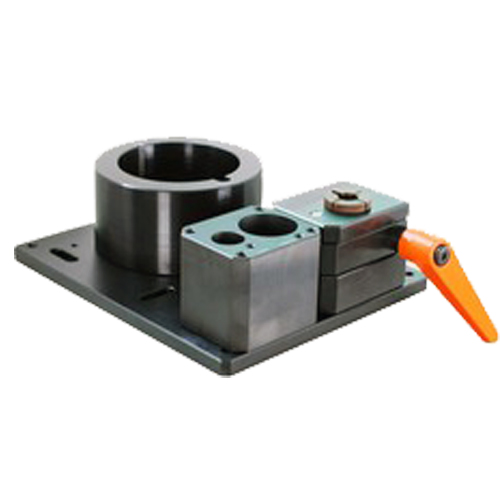

Mold assambly and disassambly table

1.Most customers like to use vise demolition which is not safe and may damage mold easily and also is time and labour waste.
2.Configurating with AB forming tool disassambly speicial station, standard tool, forming tool sperately disassambly station.
3.It’s suitable for all thick turret tool, standard station is ABCD. If need E station please advise in advance.
4.Original fit with thin turret tool, which can disassamble BD station standard and forming tool.
Disassambly safety, saving time, saving effort, convenient and fast.
