90 fast adjust D station punch die and stripper

TR010104-90 Fast Adjustment Tool (90 series is WILSON company’s trademark)

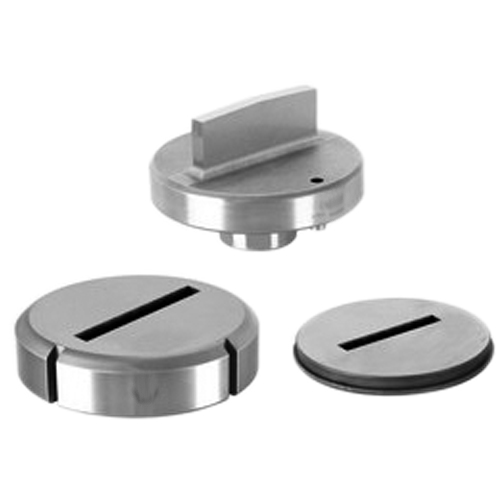

A station punch body, die and stripper

1. 90 standard punch body has difference with 90 air blow punch body on ABS guide key position.
2. Punch body’s grinding capacity is 6.5mm, the life is 3 times than standard 85 series tool.
3. Quick blow head can adjust punch body height, lower utility costs more than 60%.
4. Guide adopts lubrication design, graphite processing, to reduce the abrasion of punch turret hole.

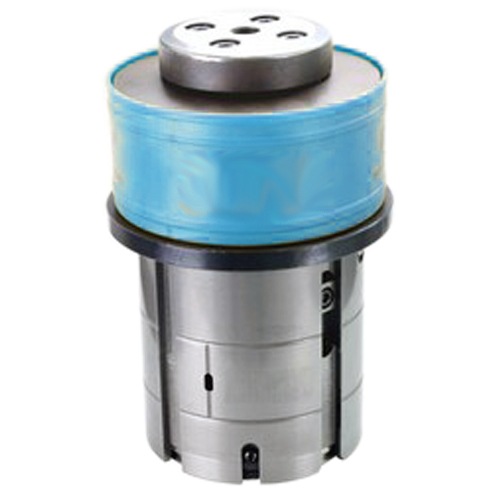

A station quick change punch head assembly and guide

1. 90 ABS tool has self-lubricating function which is similar with Amada air blow tool.
2. Punch body’s grinding capacity is 6.5mm and the life is more than 3 times than 85 standard tool.
3. Fast change punch head can adjust punch height and lower using cost more than 60%.
4. Guide adopts lubrication design, graphite processing, to reduce the abrasion of punch turret hole.

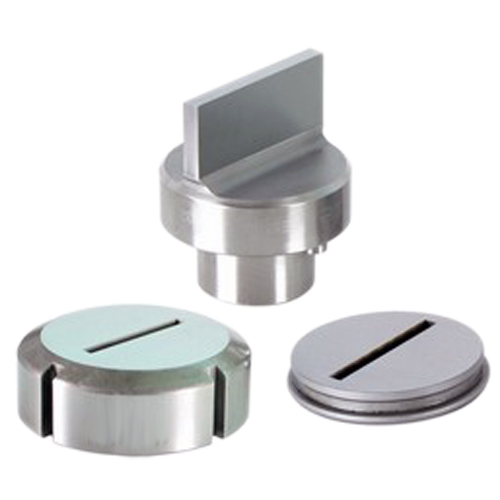

B station punch body, die and stripper plate

1. ABS tool has self-lubricating function.
2. Punch body’s grinding capacity is 6.5mm and the life is more than 3 times than 85 standard tool.
3. Fast change punch head can adjust punch height and lower using cost more than 60%.
4. Guide adopts lubrication design, graphite processing, to reduce the abrasion of punch turret hole.

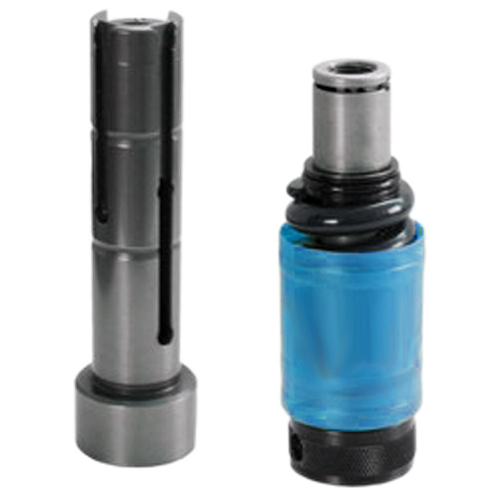

B station quick change punch head assembly and guide

1. 90 ABS tool has self-lubricating function which is similar with Amada air blow tool.
2. Punch body’s grinding capacity is 6.5mm and the life is more than 3 times than 85 standard tool.
3. Fast change punch head can adjust punch height and lower using cost more than 60%.
4. Guide adopts lubrication design, graphite processing, to reduce the abrasion of punch turret hole.


C/D/E station punch body, die and stripper plate

1. 90 punch body’s grinding capacity is more than 10mm.
2. 90 guide assembly can fast adjust, and no need to add shim after grinding the punch blade.
3. 90 guide surface adopts lubrication design, graphite processing, to reduce the abrasion of punch turret hole.

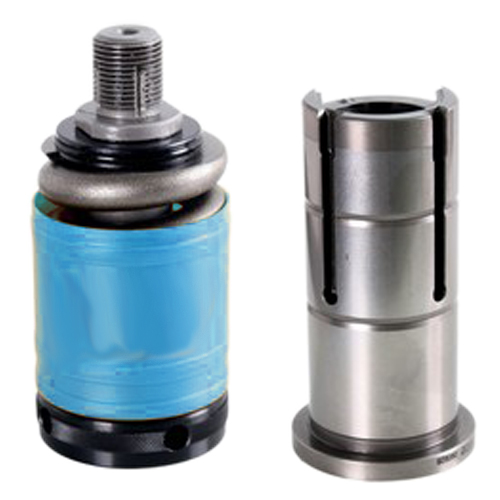

C/D/E station guide assembly

1. For 90 guide assembly, there’s no need to add shim when adjust the tool. By rotating the button directly to adjust the height and can increase 2-3 times of grinding capacity.
2. Guide adopts lubrication design, graphite processing, to reduce the abrasion of punch turret hole.
3. The locking form on the stipper plate is different with the original tool. The original stripper locking ring may damage easily. But our tool adopt special process spring locking form which is safe and easy to use and can save cost improve efficiency.
4. The locking screw on the stripper must change after some time or else the slip teeth may cause the screw may not be removed, then the stripper will not be removed out easily. This will increase much more using cost. At the meantime, please use high quality allen wrench to disamble. This will not make the screw hole slip teeth.
