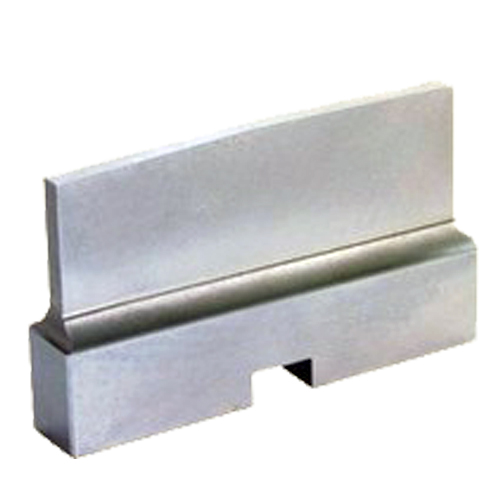

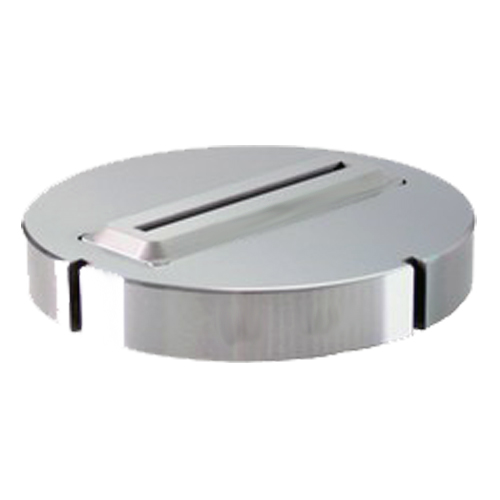

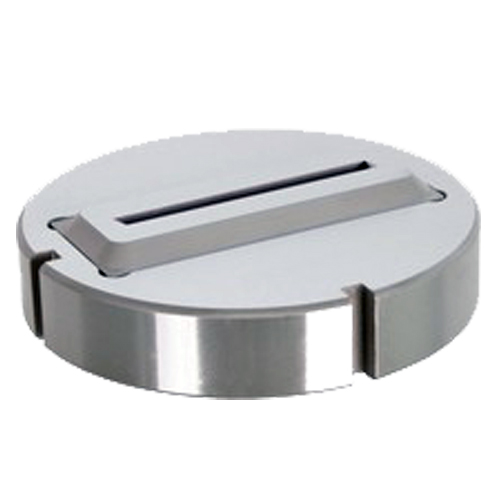

D station die blade

TR010107-Thick Turret Ecnomic Series tools

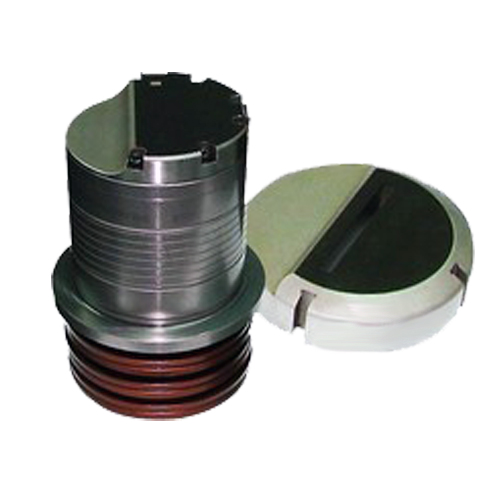

A/B station EX fast adjustment spring and standard punch assembly

1. EX fast adjustment spring assembly+standard punch body+standard guide+standard die (recommended buy)
2. EX fast adjustment spring assembly+standard punch body+openned guide+stripper plate+standard die
3. Ex fast adjustmetn spring max adjustment amount is 10mm (punch plate thickness less than 1.5mm), punch body’s life will extend more than 3 times.
4. We don’t suggest to use Ex fast adjustment spring together with punch inserts type assembly.

A/B station EX fast adjustment spring assembly

1. EX fast adjustment spring assembly+standard punch body+standard guide+standard die (recommended buy)
2. EX fast adjustment spring assembly+standard punch body+openned guide+stripper plate+standard die
3. Ex fast adjustmetn spring max adjustment amount is 10mm (punch plate thickness less than 1.5mm), punch body’s life will extend more than 3 times.
4. We don’t suggest to use Ex fast adjustment spring together with punch inserts type assembly.


A station punch inserts type round tool

1.Standard punch head assembly+split punch chunk+punch insert+standard guide+standard die
2.Round diameter within 2.0-6.0mm, the punch body can use substituted punch insert structure.
3.Punch inserts structure do not suggest to use with open guide assembly.

A station openned guide

1. Standard punch head assembly+standard punch body+openned guide+ stripper plate+standard die
2. Openned guide suggest to use with standard punch body, and do not suggest to use with punch inserts tool.

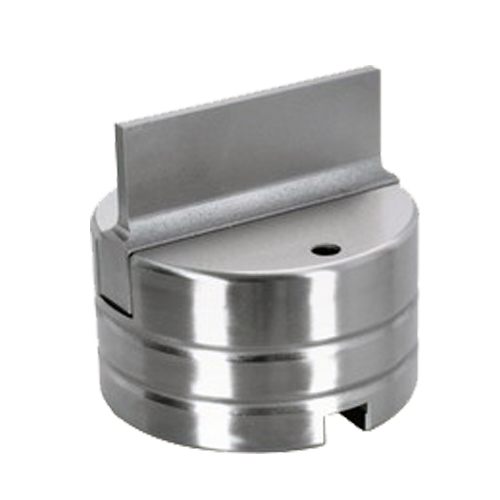

C station punch blade

1. Our blade thickness is 15mm
2. Amada changable punch body 28mm
3. Wilson Tec blade thickness is 19.05mm

D station punch blade


1. Our blade thickness is 14.9mm
2. Amada changable punch body thickness is16mm
3. Wilson Tec blade thickness is 16mm


E station punch blade

1. Our blade thickness is 14.9mm
2. Amada changable punch body 16mm
3. Wilson Tec blade thickness is 18mm
