Thick Turret Long Guide Punch Tool

C station adjustment tool

  • Part Name: C station adjustment tool
  • Material: punch body:SKH-51 punch die:DC53
  • Surface finish -Ra: 0.0001
  • Tolerance: 0.01
  • Applications: Sheet mental areas

TR010111-Adaptor for different tooling station and other mold accessories

A-B Adaptor

1. When there’s no suitable station for mold, we can equip it into large station via adaptor.
2. If turret A station is lack, while B station has empty station, or operator want to put A station mold into rotated B station for using, he can choose AB adaptor to realize it.


A-C Adaptor

1. When there’s no suitable station for mold, we can equip it into large station via adaptor.
2. If turret A station is lack, while C station has empty station, or operator want to put A station mold into C station for using, he can choose AC adaptor to realize it.
3. Some machine’s auto index station is in C station, such as FINN-POWER, then you can transfer A station tool into index C station by adaptor, so there’s no need to buy a large station tool which will save a lot money.

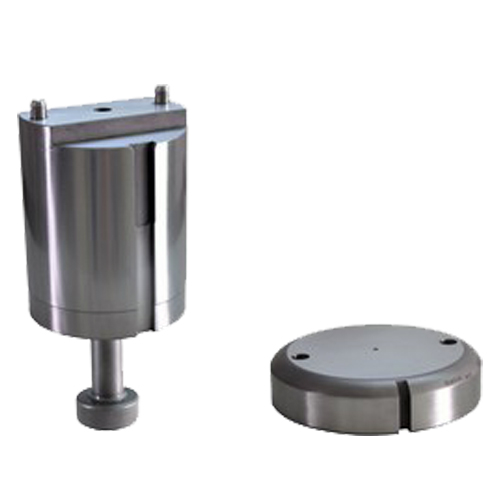

A station punch and die integrated alignment tool

1. The common double ring machine inland is AMADA, TAILIFT, LIANGFAJI etc, Generally, our domestic machine is with single ring.
2. Applicant with turret A station is double ring punch press, i,e there’s an A station inside and an A station outside.
3. Whether the turret alignment accurate or not will directly effect the tooling’s life, machine precision and stamping product’s quality.
4. The accuracy of the alignment will occurs deviation by the machine using. this will cause mold alignment’s accuracy errors, which will effect product’s quality directly.
5. Along with the machine use, must inspect the tool alignment’s accuracy regularly, timely adjustment, to avoid serious results and cause more lost.
6. Also the guide key on the machine need regular inspection, once find any abrasion, need to change at once. Or else the alignment accuracy will not keep long, and will cause mold biting edge and too much burr on stamping parts which will affect the product’s quality.

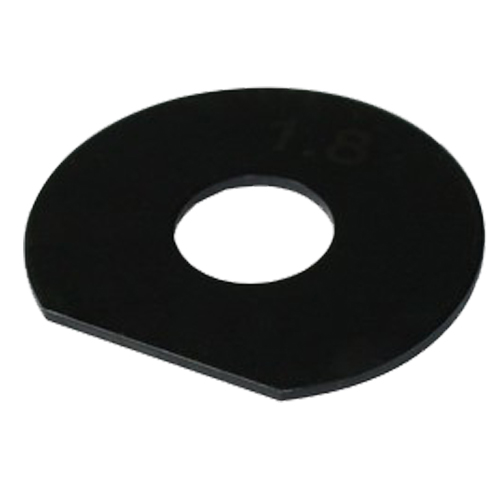

A/B station die shim

It’s suitable for adjusting all the thick turret die height after grinding.

A/B/C/D/E station alignment tool

1.Whether the turret alignment accurate or not will directly effect the tooling’s life, machine precision and stamping product’s quality.
2.Along with the machine use, must inspect the tool alignment’s accuracy regularly, timely adjustment, to avoid serious results and cause more lost.
3. Whether the turret alignment accurate or not will directly effect the tooling’s life, machine precision and stamping product’s quality.


B-C Adaptor

1. When there’s no suitable station for mold, we can equip it into large station via adaptor.
2. If turret B station is lack, while C station has empty station, or operator want to put B station mold into C station for using, he can choose BC adaptor to realize it.
3. Some machine’s auto index station is in C station, such as FINN-POWER, then you can transfer B station tool into index C station by adaptor, so there’s no need to buy a large station tool which will save a lot money.


D-B adjustment integrated adaptor

1. To insert B station punch body directly into the adaptor, and no need B station guide, the accuracy is very high.
2. Can equip with REX adjustable punch head, to realize punch body fast adjustment, and increase punch body grinding capacity.
3. Stripper plate is standard 90,85 opened type, low price, button locking.
4. It’s especially suitable for CNC punch press that have D station as auto index station, such as FINN-POWER punch press.

B-D Adaptor

1. When there’s no suitable station for mold, we can equip it into large station via adaptor.
2. If turret B station is lack, while D station has empty station, or operator want to put B station mold into D station for using, he can choose BD adaptor to realize it.
3. Some machine’s auto index station is in C and D station, such as FINN-POWER, then you can transfer B station tool into index D station by adaptor, so there’s no need to buy a large station tool which will save a lot money.

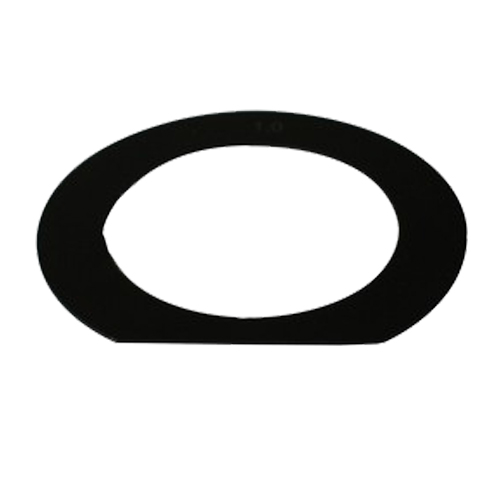

D station punch body shim

1. After grinding, 85 standard CDE station punch body’s closed height is not enough, we can use this shim.
2. But the shim height should be no over than 2mm. If over this height, the guide’s guide key will not coordinate with punch body key correctly.

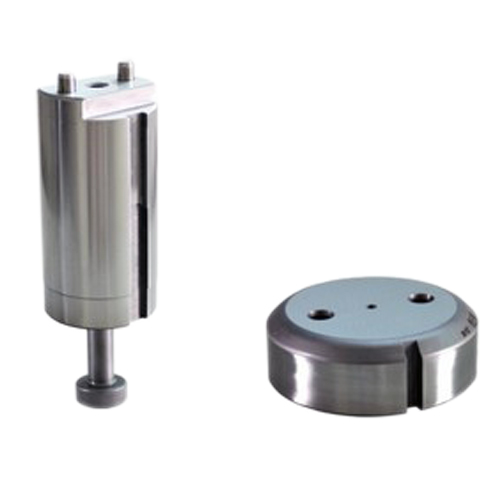

B station punch and die integrated alignment tool

1. The common double ring machine inland is AMADA, TAILIFT, LIANGFAJI etc, Generally, our domestic machine is with single ring.
2. Applicable with turret B station is double ring punch press, i,e there’s an B station inside and an B station outside.
3. Whether the turret alignment accurate or not will directly effect the tooling’s life, machine precision and stamping product’s quality.
4. The accuracy of the alignment will occurs deviation by the machine using. this will cause mold alignment’s accuracy errors, which will effect product’s quality directly.
5. Along with the machine use, must inspect the tool alignment’s accuracy regularly, timely adjustment, to avoid serious results and cause more lost.
6. Also the guide key on the machine need regular inspection, once find any abrasion, need to change at once. Or else the alignment accuracy will not keep long, and will cause mold biting edge and too much burr on stamping parts which will affect the product’s quality.

Plastic stripper

1. When punch body’s min size is larger than 6mm, must use plastic stripper, to prevent material jumping.
2. When grinding punch body, take out the plastic stripper with needle-nose pliers, after finish grinding, re-install or replace a new one.
3. When the top of the stripper on the punch body worn or missing, the die hole will easily have residual waste while stamping, which will cause waste floating and rebound.
4. Our company’s plastic stripper adopt Japanese polyurethane, both the elasticity and toughness is better than urethane.
5. We suggest customer to order some more stripper in stock. A small amount of inputs will cause little plate or mold damage that caused by waste floating.
Standard specifications are 3.3*6.5 6.3*10 10.5*16. They can be used on the famous brand both inland and abroad.
