CNC Turret Punch Components

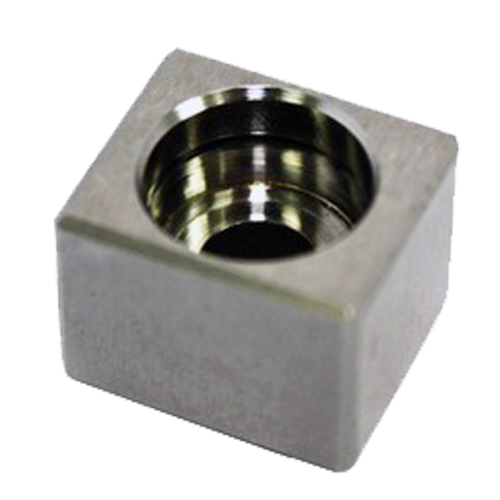

Machine location key
- Part Name： Machine location key
- Material： punch body:SKH-51 punch die:DC53
- Surface finish -Ra： 0.0001
- Tolerance： 0.01
- Applications：
TR011102-China brand punch press tool accessories

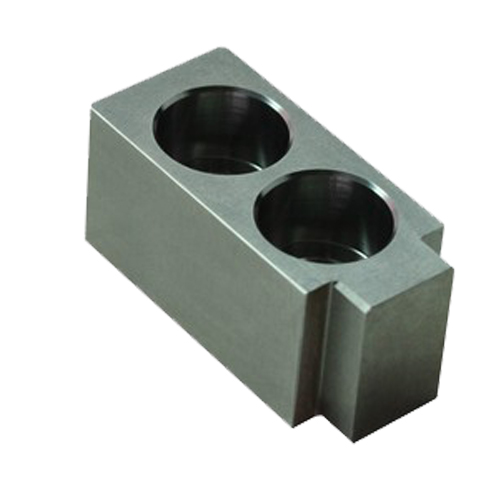

AB Station Punch Guide Key
- It’s applicable for CNC punch press upper turret AB station.
- Installing size is 14.0mm, guide size is 4.76mm.
- Guide key has special treatment, wear resisstant, can precision fit with mold guide key.

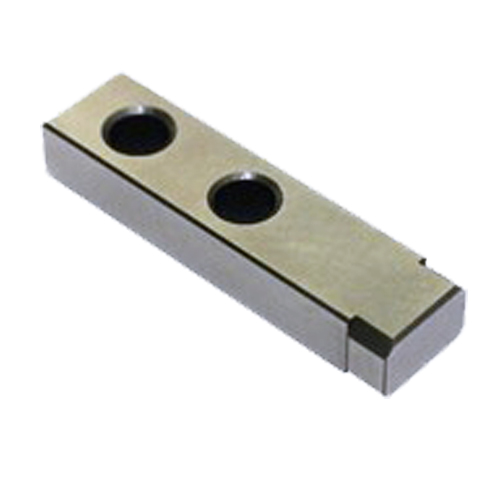

AB Station Punch Guide Key
- It’s applicable for CNC punch press upper turret CD station.
- Installing size is 20.0mm, guide size is 12.7mm.
- Guide key has special treatment, wear resisstant, can precision fit with mold guide key groove.

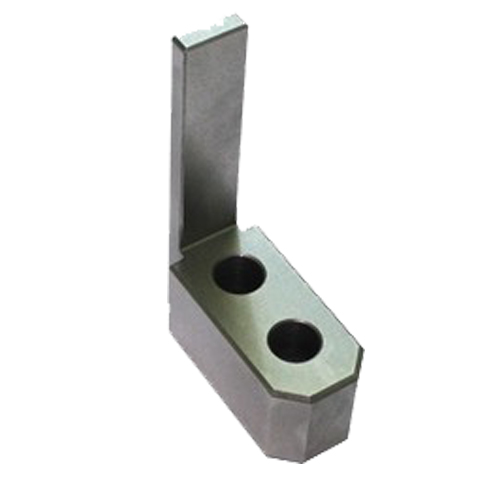

AB Station Die Guide Key
- It’s applicable for CNC punch press lower turret CD station.
- Installing size is 10.0mm, guide size is 6.35mm.
- Guide key has special treatment, wear resisstant, can precision fit with mold guide key groove.
