CNC Turret Punch Components

Machine position key

  • Part Name: Machine position key
  • Material: punch body:SKH-51 punch die:DC53
  • Surface finish -Ra: 0.0001
  • Tolerance: 0.01
  • Applications:

TR011102-China brand punch press tool accessories

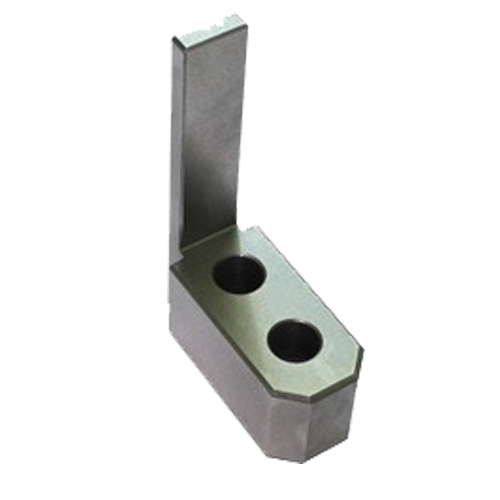

AB Station Punch Guide Key


  1. It’s applicable for CNC punch press upper turret AB station.
  2. Installing size is 14.0mm, guide size is 4.76mm.
  3. Guide key has special treatment, wear resisstant, can precision fit with mold guide key.

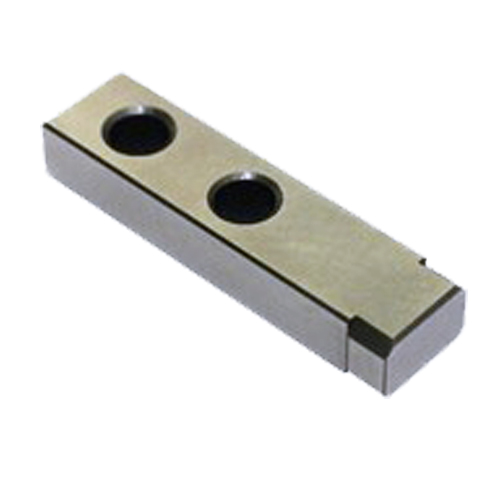

AB Station Punch Guide Key

  1. It’s applicable for CNC punch press upper turret CD station.
  2. Installing size is 20.0mm, guide size is 12.7mm.
  3. Guide key has special treatment, wear resisstant, can precision fit with mold guide key groove.

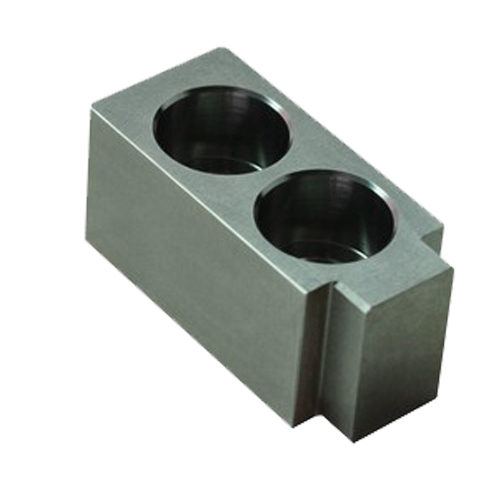

AB Station Die Guide Key

  1. It’s applicable for CNC punch press lower turret CD station.
  2. Installing size is 10.0mm, guide size is 6.35mm.
  3. Guide key has special treatment, wear resisstant, can precision fit with mold guide key groove.
