Tooling cabinet
- Part Name： Tooling cabinet
- Material：
- Surface finish -Ra：
- Tolerance：
- Applications：
TR011001-tooling storage

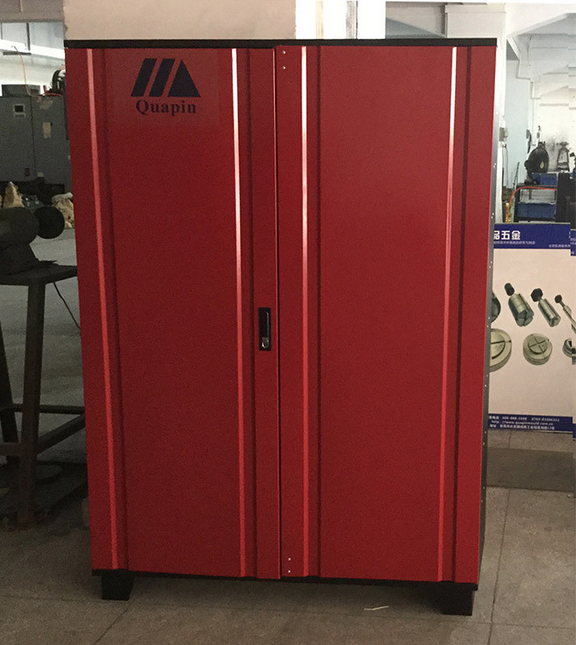

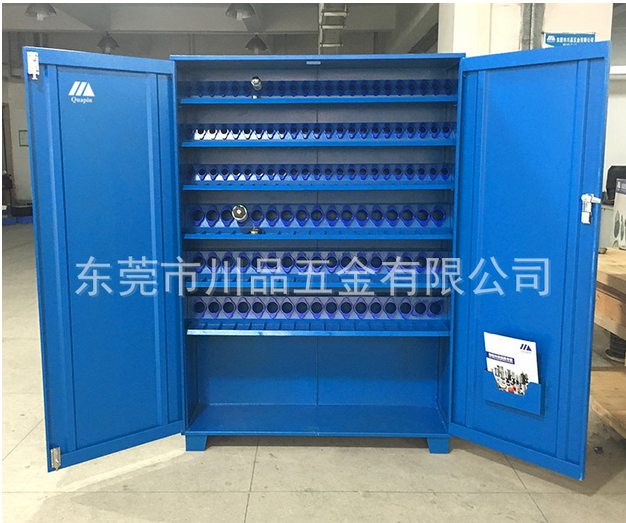

Thick TurretTooling Storage Cabinet
Size(L*W*H): 1100*340*1550mm
Thick Turret Mold Carbinet: total 7 floors.
No 1-3, can put 63 sets A station tool
No.4-5 can put 32 sets B station tool
No.6-7 can put CDE station tool with total 16 sets.
Features:
1. It’s used for tooling’s categories, exhibition and management
2. It’s very convenient for installation and using.
3. Anti-dust, anti-rusty, anti-crash, no worry about tooling stuck, rusty, scratch and bumps.

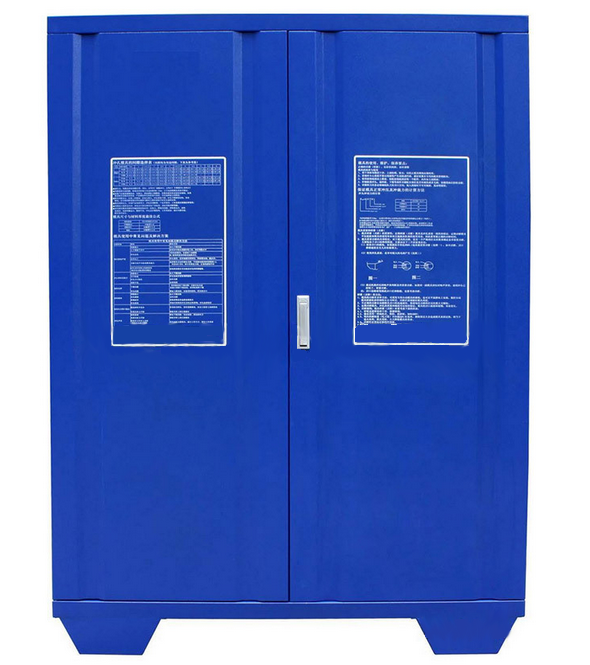

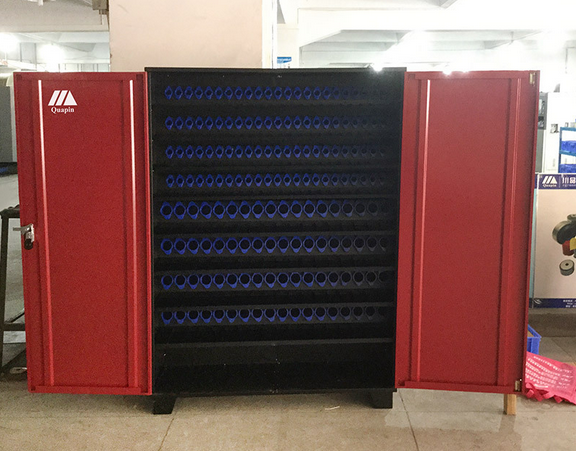

Trumpf Tooling Storage Cabinet
Size(L*W*H): 1100*340*1550mm

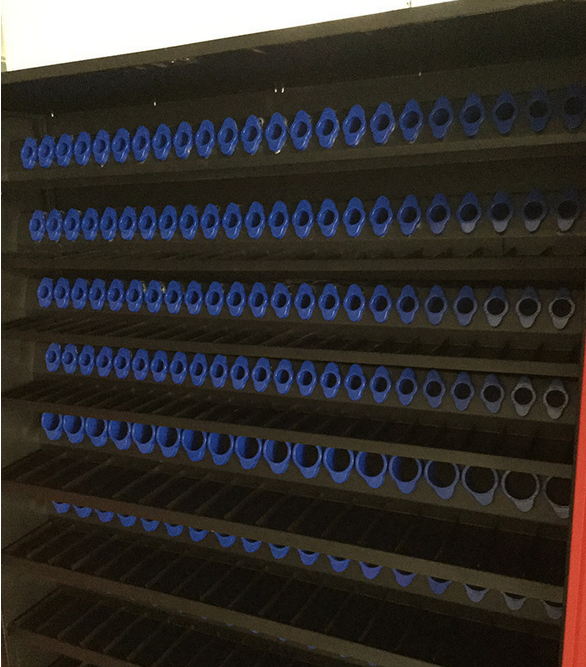

Trumpf Tooling Carbinet: total 7 floors.
No 1 can put 4 tool holder assembly and multi tool.
No.2-3 can put size I tool, every floor can put 12pcs punch bodies, 12pcs stripper plates and 24pcs dies.
No.4-5 can put size II tool, every floor can put 12pcs punch bodies, 12pcs stripper plates and 24pcs dies.
No.6 can put 12 sets forming tools including adjusting ring.
No.7 can put 7 tool holder assembly or forming tool.
Features:
3. It’s used for tooling’s categories, exhibition and management
4. It’s very convenient for installation and using.
3. Anti-dust, anti-rusty, anti-crash, no worry about tooling stuck, rusty, scratch and bumps.
