Tooling Management

Tooling storage cabinet

  • Part Name: Tooling storage cabinet
  • Material:
  • Surface finish -Ra:
  • Tolerance:
  • Applications:

TR011001-tooling storage

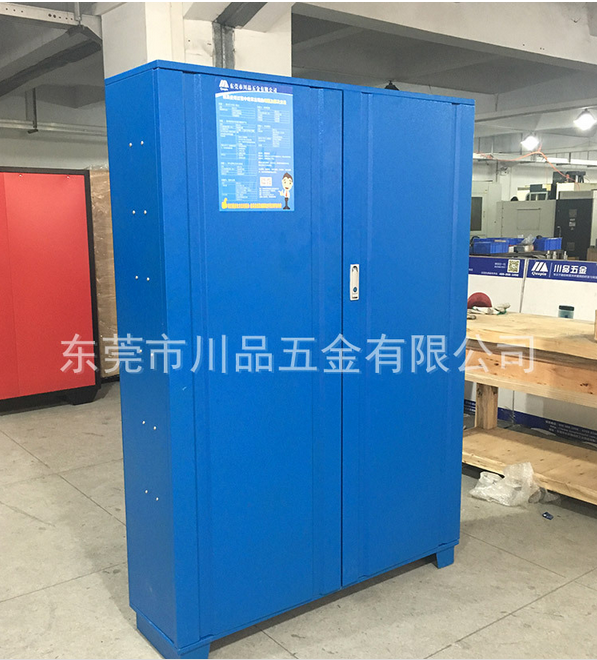

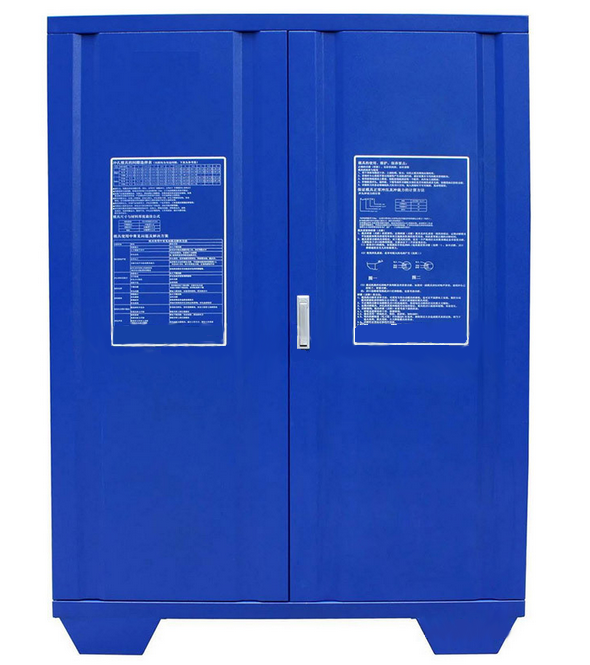

Thick TurretTooling Storage Cabinet

Size(L*W*H): 1100*340*1550mm

Thick Turret Mold Carbinet: total 7 floors.
No 1-3, can put 63 sets A station tool
No.4-5 can put 32 sets B station tool
No.6-7 can put CDE station tool with total 16 sets.


Features:
1. It’s used for tooling’s categories, exhibition and management
2. It’s very convenient for installation and using.
3. Anti-dust, anti-rusty, anti-crash, no worry about tooling stuck, rusty, scratch and bumps.

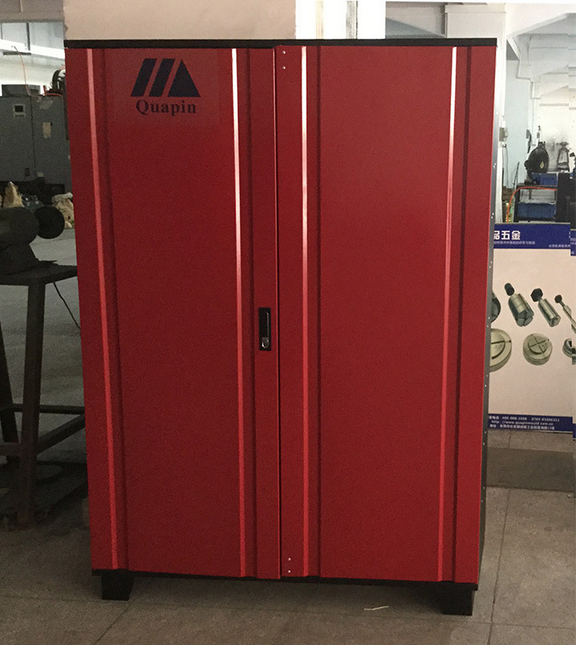

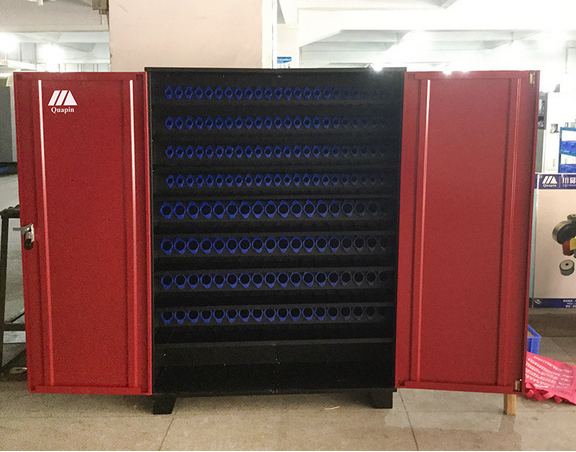

Trumpf Tooling Storage Cabinet

Size(L*W*H): 1100*340*1550mm

Trumpf Tooling Carbinet: total 7 floors.
No 1 can put 4 tool holder assembly and multi tool.
No.2-3 can put size I tool, every floor can put 12pcs punch bodies, 12pcs stripper plates and 24pcs dies.
No.4-5 can put size II tool, every floor can put 12pcs punch bodies, 12pcs stripper plates and 24pcs dies.
No.6 can put 12 sets forming tools including adjusting ring.
No.7 can put 7 tool holder assembly or forming tool.


Features:
3. It’s used for tooling’s categories, exhibition and management
4. It’s very convenient for installation and using.
3. Anti-dust, anti-rusty, anti-crash, no worry about tooling stuck, rusty, scratch and bumps.
