Die holder
Die shim-1
- Part Name： Die shim-1
- Material： 45# steel
- Surface finish -Ra：
- Tolerance：
- Applications：
TR0210
TR021001-1V bolt fixed standard die holder-1
| No. | Length (mm) | H (mm) | Material | Heat Treatment |
| 330 |
L=835 S=415 |
81.5 | 45# steel | HRC25+-3 |
TR021002-1V slot inserted standard die holder-1
| No. | Length (mm) | H (mm) | Material | Heat Treatment |
| 0815 |
L=840 S=420 |
61.5 | 45# steel | HRC25+-3 |
TR021003-2V die guide-1
| No. | Length (mm) | H (mm) | Material | Heat Treatment |
| 300 |
L=835 S=415 |
10 | 45# steel | HRC25+-3 |

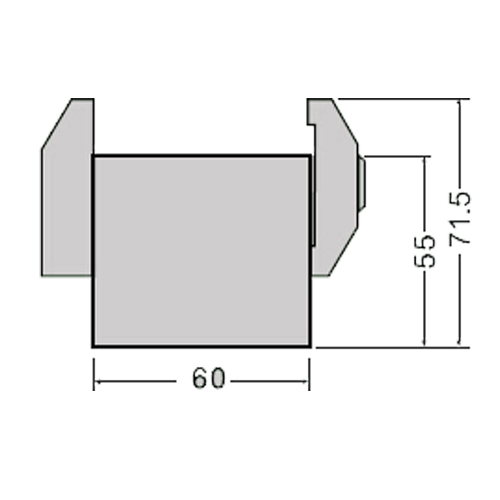

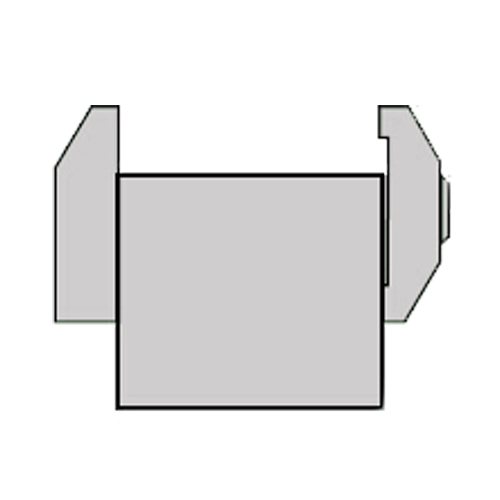

TR021004-Die shim-1
| No. | Length (mm) | H (mm) | Material | Heat Treatment |
| 055 |
L=835 S=415 |
55 | 45# steel | HRC25+-3 |

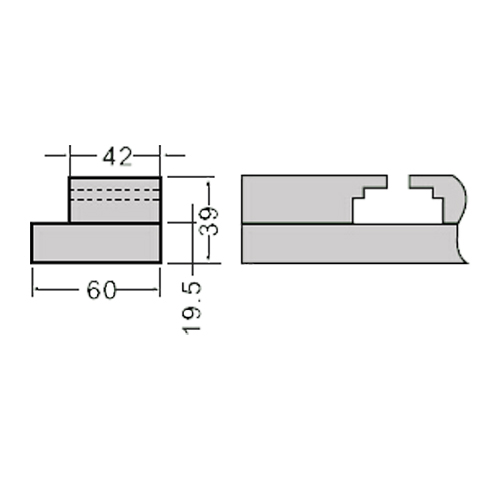

TR021005-2V common die holder-1
| No. | Length (mm) | H (mm) | Material | Heat Treatment |
| 33039 |
L=835 S=415 |
39 | 45# steel | HRC25+-3 |

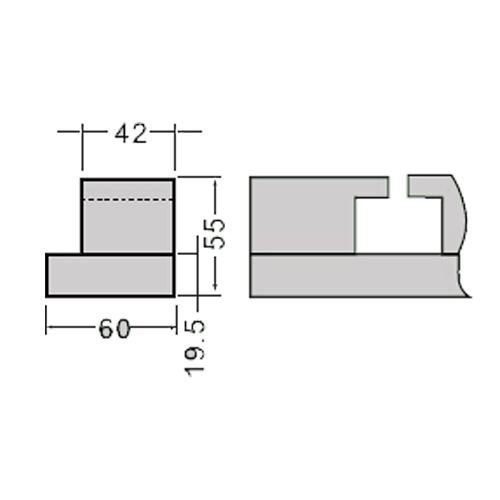

TR021006-2V common die holder-2
| No. | Length (mm) | H (mm) | Material | Heat Treatment |
| 33055 |
L=835 S=415 |
55 | 45# steel | HRC25+-3 |
TR021007-2V common die holder-3
| No. | Length (mm) | H (mm) | Material | Heat Treatment |
| 33075 |
L=835 S=415 |
75 | 45# steel | HRC25+-3 |
