Die holder

2V common die holder-3

  • Part Name: 2V common die holder-3
  • Material: 45# steel
  • Surface finish -Ra:
  • Tolerance:
  • Applications:

TR0210

TR021001-1V bolt fixed standard die holder-1


No. Length (mm) H (mm) Material  Heat Treatment
330 L=835
S=415
81.5 45# steel HRC25+-3


TR021002-1V slot inserted standard die holder-1

No. Length (mm) H (mm) Material  Heat Treatment
0815 L=840
S=420
61.5 45# steel HRC25+-3


TR021003-2V die guide-1

No. Length (mm) H (mm) Material  Heat Treatment
300 L=835
S=415
10 45# steel HRC25+-3


TR021004-Die shim-1

No. Length (mm) H (mm) Material  Heat Treatment
055 L=835
S=415
55 45# steel HRC25+-3

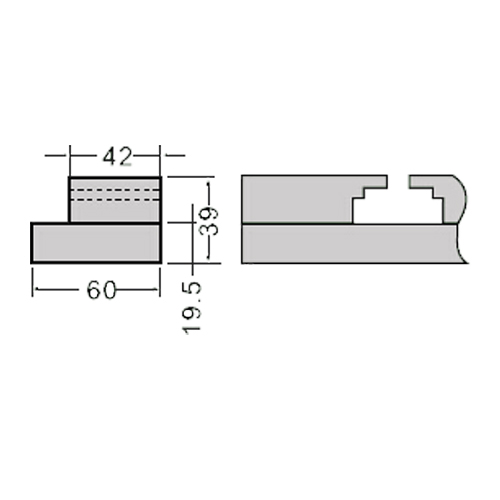

TR021005-2V common die holder-1

No. Length (mm) H (mm) Material  Heat Treatment
33039 L=835
S=415
39 45# steel HRC25+-3

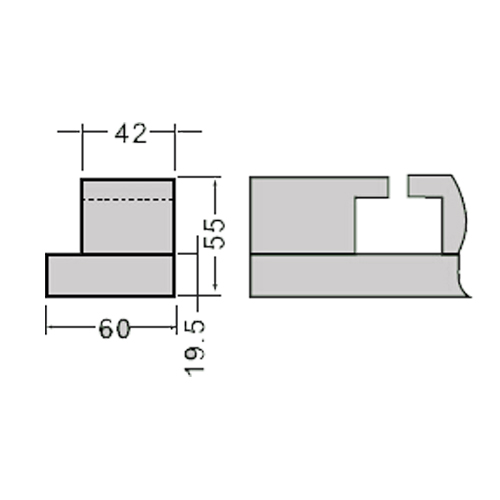

TR021006-2V common die holder-2

No. Length (mm) H (mm) Material  Heat Treatment
33055 L=835
S=415
55 45# steel HRC25+-3

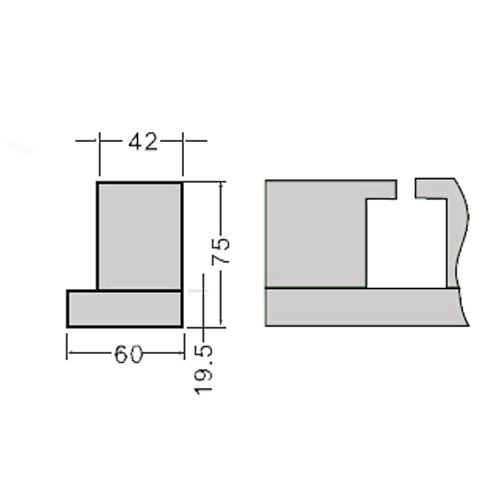

TR021007-2V common die holder-3

No. Length (mm) H (mm) Material  Heat Treatment
33075 L=835
S=415
75 45# steel HRC25+-3
