Sharp angle upper punch

45°sharp angle upper die-1

Part Name： 45°sharp angle upper die-1
Material： 42CrMo
Surface finish -Ra：
Tolerance：
Applications：

TR020202-30 degree sharp angle upper die-2

No.	Type	H (mm)	R Available	Material & Heat Treatment	Max.Pressure
103	Solid	67	0.52R	42CrMo & HRC47+-2	100TON/M
10380	Sectional	67	0.52R	42CrMo & HRC47+-2	30TON/M

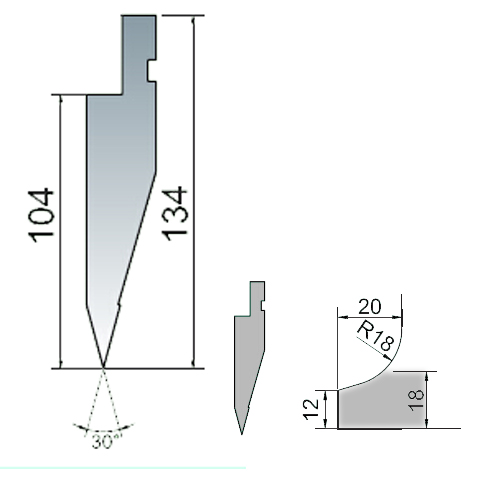

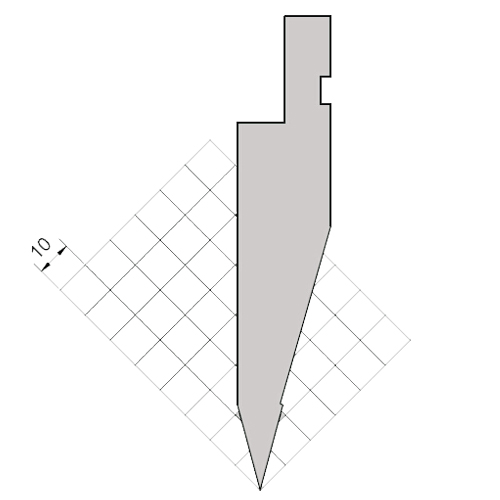

TR020203-30 degree sharp angle upper die-3

No.	Type	H (mm)	R Available	Material & Heat Treatment	Max.Pressure
210	Solid	104	0.65R	42CrMo & HRC47+-2	100TON/M
21080	Sectional	104	0.65R	42CrMo & HRC47+-2	20TON/M

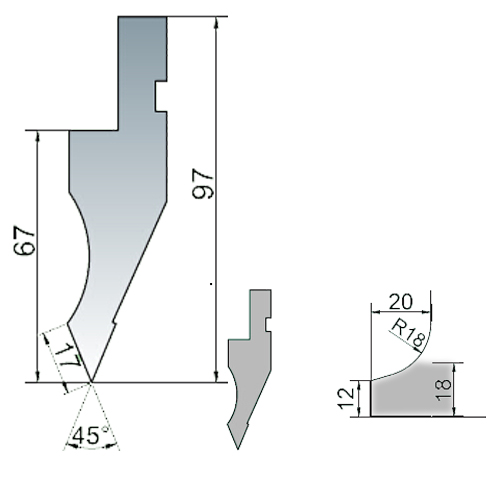

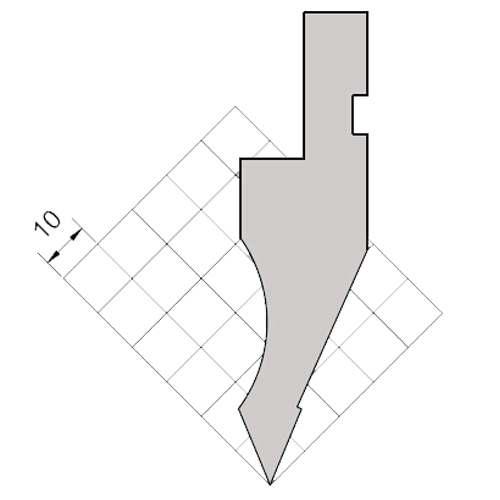

TR020204-45°sharp angle upper die-1

No.	Type	H (mm)	R Available	Material & Heat Treatment	Max.Pressure
008	Solid	67	0.37R	42CrMo & HRC47+-2	60TON/M
049	Sectional	67	0.37R	42CrMo & HRC47+-2	30TON/M

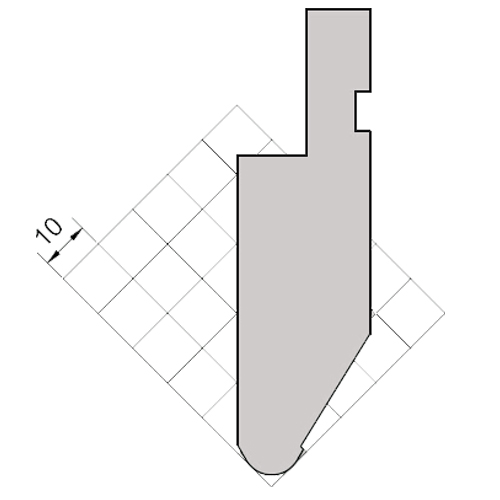

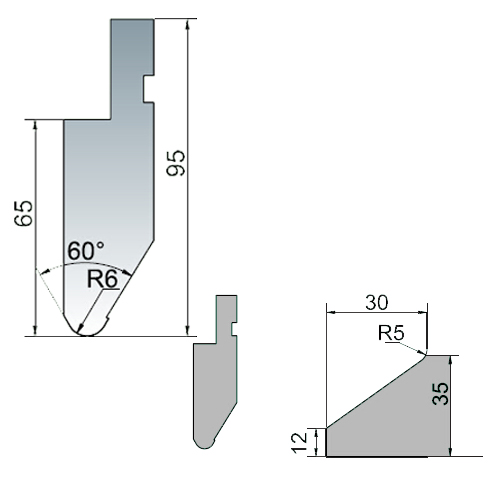

TR020205-60° sharp angle upper die-1

No.	Type	H (mm)	R Available	Material & Heat Treatment	Max.Pressure
003	Solid	65	6.0R	42CrMo & HRC47+-2	100TON/M
138	Sectional	65	6.0R	42CrMo & HRC47+-2	100TON/M
